OSCILLOSCOPI MIXED-DOMAIN
INSTEK MDO-2000E Series
|
|
| Richiedi Informazioni e Quotazione |
Le caratteristiche più importanti (ENG):
- 200/100/70MHz bandwidth selections: 2 or 4 channels
- Real time sample rate per channel: 1 GSa/s (2 channels)
- Maximun real time sample rate: 1 GSa/s (4 channels)
- MDO-2000EG equips with a spectrum analyzer and a dual channel 25 MHz AWG

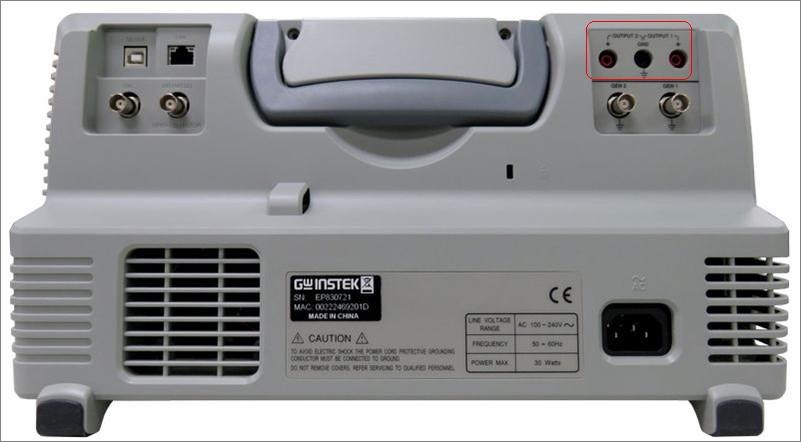

- MDO-2000EX equips with a spectrum analyzer, a dual channel 25 MHz AWG, DMM and power supply
- Per channel 10M memory depth and VPO waveform display technology
- Waveform update rate up to 120,000 wfm/s
- 8" WVGA TFT LCD
- Maxumim 1M FFT provides higher frequency domain resolution measurements
- High pass, low pass and band pass filter functions
- 29,000 segmented memory sections and waveform search functions
- I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
- Data log function is able to track signal changes up to 1000 hours
- Mask test function
- Network storage function
|
Download
Brochure | Introduzione al prodotto |
| Modello |
Larghezza di Banda |
Canali |
Campionamento |
Memoria |

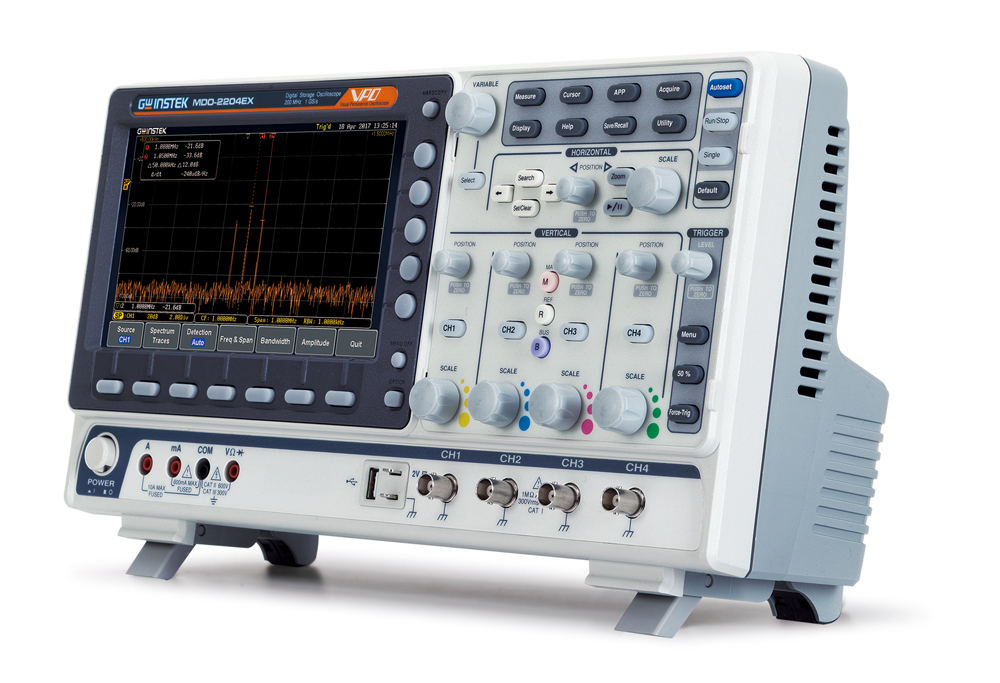

| MDO-2204E(G/X) |
200 MHz |
4 |
Max. 1GSa/s |
10M / ch |

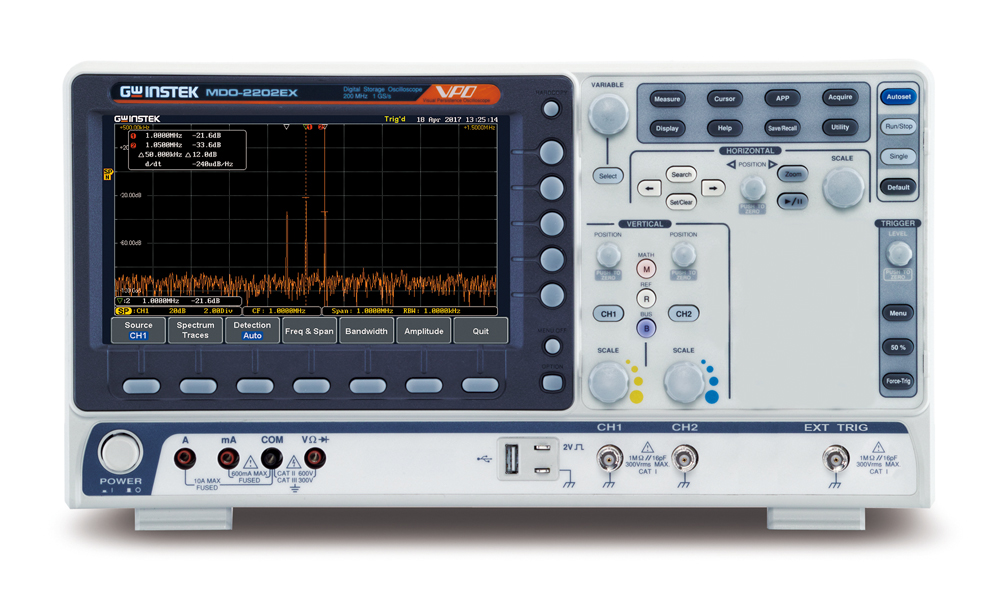

| MDO-2202E(G/X) |
200 MHz |
2 |
Per channel 1GSa/s |
10M / ch |

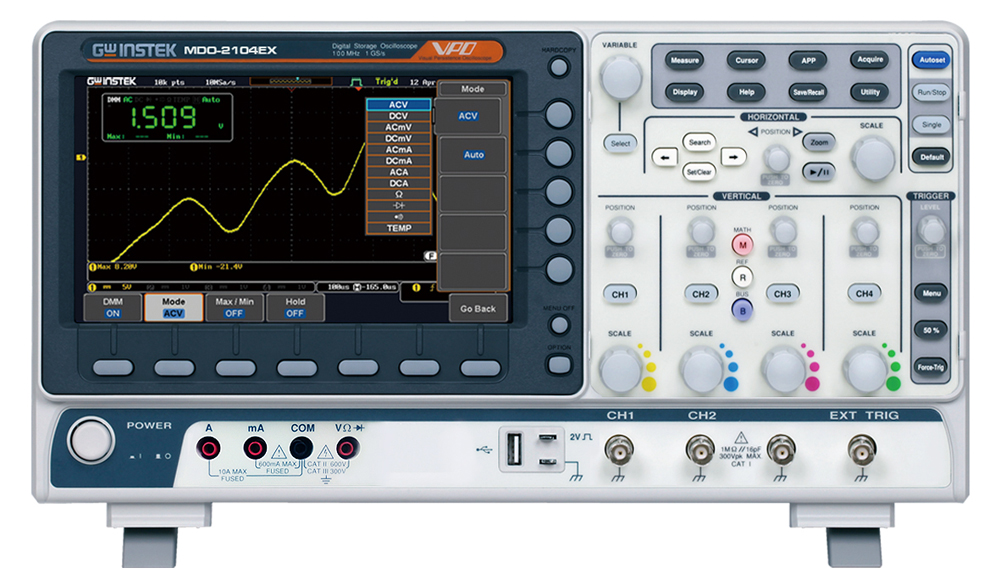

| MDO-2104E(G/X) |
100 MHz |
4 |
Max. 1GSa/s |
10M / ch |

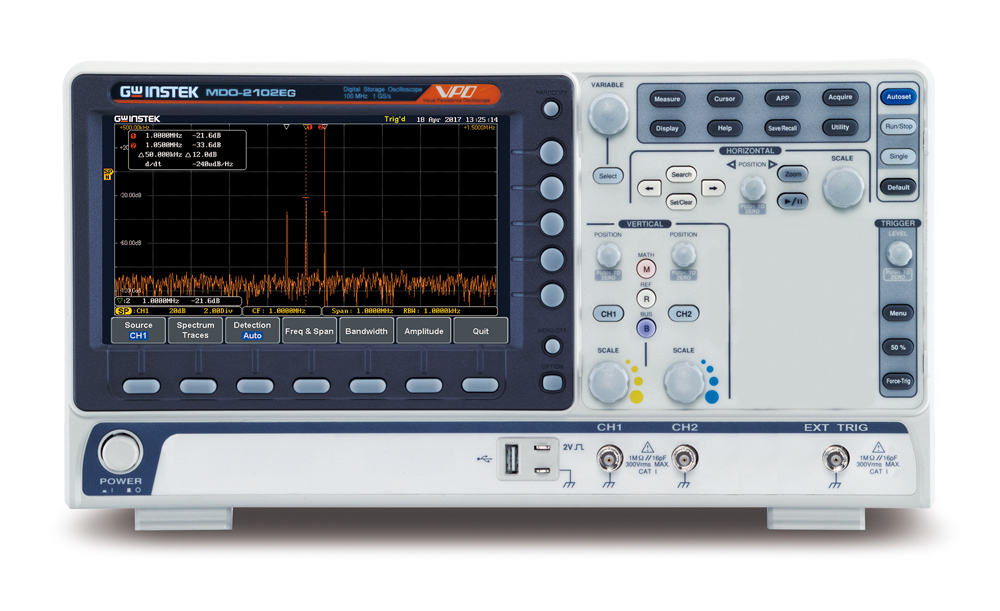

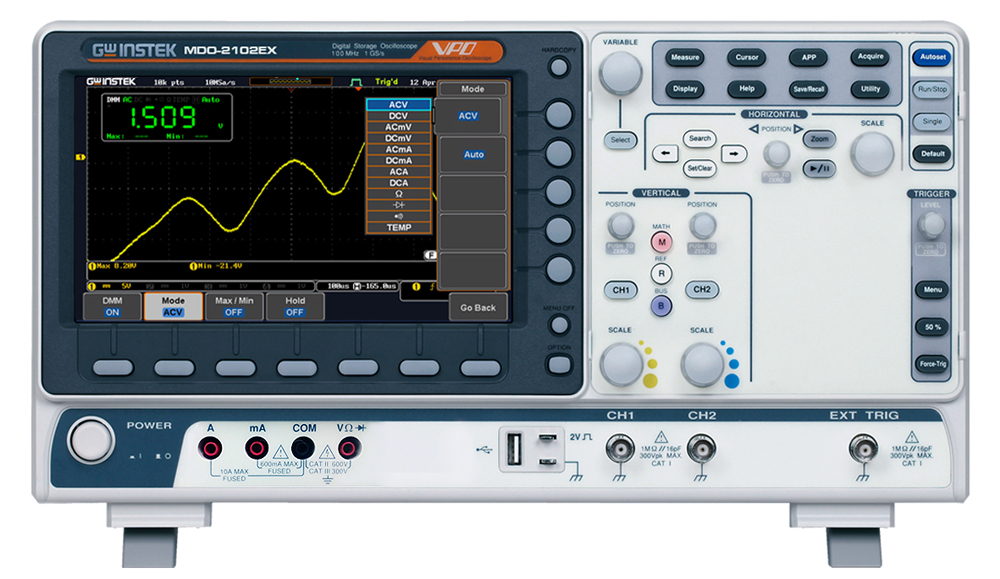

| MDO-2102E(G/X) |
100 MHz |
2 |
Per channel 1GSa/s |
10M / ch |

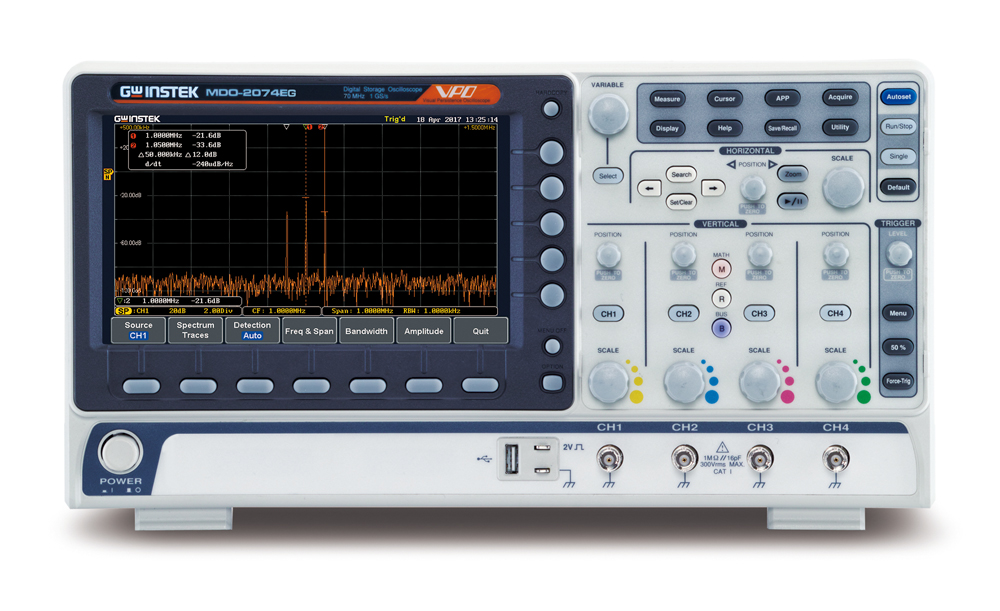

| MDO-2074E(G/X) |
70 MHz |
4 |
Max. 1GSa/s |
10M / ch |
| MDO-2072E(G/X) |
70 MHz |
2 |
Per channel 1GSa/s |
10M / ch |
|
