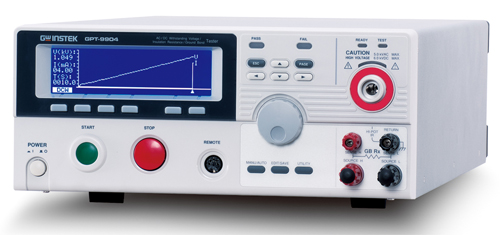

INSTEK GPT-9900

Specifiche Tecniche:

※ 500VA AC Test Capacity
※ 240x64 Ice Blue Dot matrix LCD
※ Sweep Function for DUT characteristic analysis
※ Insulation resistance measurement up to 50GΩ(GPT-9903/9904)
※ Manual/Auto Mode
※ Function Key for quick selecation
※ High intensity flash for caution & Status indication
※ Safety INTERLOCK function
※ Zero Crossing Turn-on Operation
※ Controllable Ramp-up Time
※ True RMS Current Measurement
※ High resolution: 1uA for measuring current, 2V for setting voltage
※ PWM amplifier to enhance the power efficiency and reliable testing
※ Max. 100 memory block for test condition (step) setting. And each step can be named individually.
※ Remote terminal on the front panel for “start” and “stop” control
※ Rear panel output available
※ Interface : RS-232C, USB device, Signal I/O and GPIB (optional)
