NUOVI OSCILLOSCOPI MIXED SIGNAL

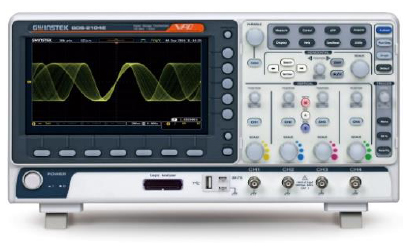

INSTEK MSO-2000E Series
|
|
| Richiedi Informazioni e Quotazione |
Le caratteristiche più importanti (ENG):
- 200/100/70MHz bandwidth selections: 2 or 4 channels
- MSO-2000E equips with a 16-channel logic analyzer
- MSO-2000EA equips with a 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator
- Real time sample rate for each channel is 1GSa/s (2-channel models); Maximum real time sample rate is 1 GSa/s (4- channel models)
- Maximum 10M memory depth and VPO waveform display technology
- Waveform update rate up to 120,000 wfms/s
- 8” WVGA TFT LCD screen display
- Maximum 1M FFT provides higher frequency domain resolution measurements
- High pass and low pass filter functions
- 29,000 segmented memory sections and waveform search function
- I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
- Data log function can track signal changes up to 100 hours
- Network storage function
|
Download
Brochure | |
| Modello |
Larghezza di Banda |
Canali |
Campionamento |
Memoria |
| MSO-2204E |
200 MHz |
4 |
1GSa/s |
10M |
| MSO-2104E |
100 MHz |
4 |
1GSa/s |
10M |
| MSO-2074E |
70 MHz |
4 |
1GSa/s |
10M |
| MSO-2204EA |
200 MHz |
4 |
1GSa/s |
10M |
| MSO-2104EA |
100 MHz |
4 |
1GSa/s |
10M |
| MSO-2074EA |
70 MHz |
4 |
1GSa/s |
10M |
| MSO-2202E |
200 MHz |
2 |
1GSa/s |
10M |
| MSO-2102E |
100 MHz |
2 |
1GSa/s |
10M |
| MSO-2072E |
70 MHz |
2 |
1GSa/s |
10M |
| MSO-2202EA |
200 MHz |
2 |
1GSa/s |
10M |
| MSO-2102EA |
100 MHz |
2 |
1GSa/s |
10M |
| MSO-2072EA |
70 MHz |
2 |
1GSa/s |
10M |
|
