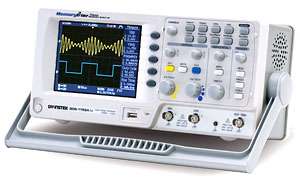

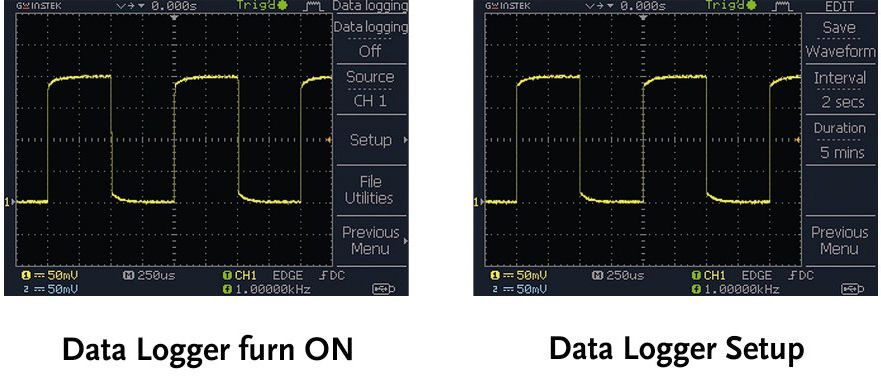

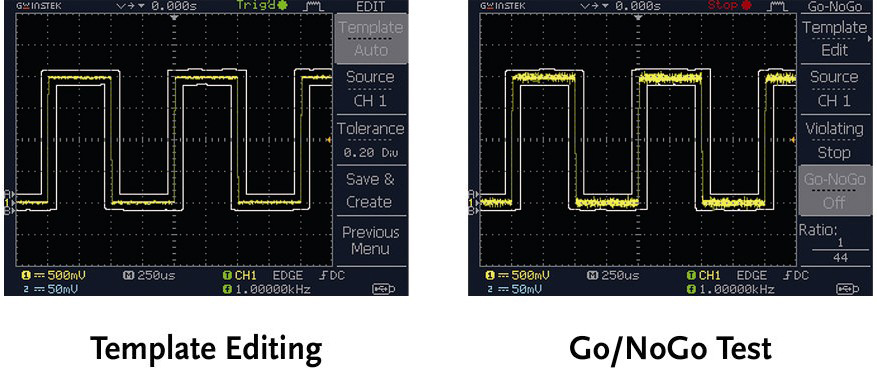

GDS-1072A-U |
GDS-1102A-U |
GDS-1152A-U |
| VERTICAL |
| Channels |
2 |
2 |
2 |
| Bandwidth |
DC~70MHz(-3dB) |
DC~100MHz(-3dB) |
DC~150MHz(-3dB) |
| Rise Time |
<5ns Approx. |
<3.5ns Approx. |
<2.3ns Approx. |
| Sensitivity |
2mV/div ~ 10V/div (1-2-5 increments) |
| Accuracy |
±(3% x |Readout| + 0.1 div + 1mV) |
| Input Coupling |
AC, DC & Ground |
| Input Impedance |
1MΩ±2%, ~15pF |
| Polarity |
Normal & Invert |
| Maximum Input |
300V (DC+AC peak), CATII |
| Waveform Signal Process |
+ , - , x, FFT, FFTrms ,Zoom FFT |
Offset Range
|
2mV/div ~ 50mV/div: ±0.4V
100mV/div ~ 500mV/div: ±4V
1V/div ~ 5V/div: ±40V
10V/div: ±300V |
| Bandwidth Limit |
20MHz (-3dB) |
| TRIGGER |
| Sources |
CH1 , CH2 , Line , EXT |
| Modes |
Auto, Normal, Single, TV, Edge, Pulse Width |
| Coupling |
AC , DC , LF rej. , HF rej. , Noise rej. |
| Sensitivity |
DC ~ 25MHz: Approx. 0.5div or 5mV;
25MHz ~ 70/100/150MHz: Approx. 1.5div or 15mV |
| EXT TRIGGER |
| Range |
±15V |
| Sensitivity |
DC ~ 25MHz : ~ 50mV ; 25M ~ 70/100/150MHz : ~15mV |
| Input Impedance |
1MΩ±2% , ~ 15pF |
| Maximum Input |
300V (DC AC peak) , CATII |
| HORIZONTAL |
| Range |
1ns/div ~ 50s/div (1-2.5-5 increments); ROLL : 50ms/div ~ 50s/div |
| Modes |
Main, Window, Window Zoom, Roll, X-Y |
| Accuracy |
±0.01% |
| Pre-Trigger |
10 div maximum |
| Post-Trigger |
1000 div |
| X-Y MODE |
| X-Axis Input |
Channel 1 |
| Y-Axis Input |
Channel 2 |
| Phase Shift |
±3°at 100kHz |
| SIGNAL ACQUISITION |
| Real-Time Sample Rate |
1GSa/s maximum |
| Equivalent Sample Rate |
25GSa/s maximum |
| Vertical Resolution |
8 Bits |
|
2 Mega Points maximum |
| Acquisition Mode |
Normal, Peak Detect, Average |
| Peak Detection |
10ns (500ns/div ~ 10s/div) |
| Average |
2 , 4 , 8 , 16 , 32 , 64 , 128 , 256 |
| CURSORS AND MEASUREMENT |
| Voltage Measurement |
Vpp ,Vamp ,Vavg ,Vrms ,Vhi ,Vlo ,Vmax ,Vmin ,Rise Preshoot/Overshoot ,Fall Preshoot/Overshoot |
| Time Measurement |
Freq ,Period ,Rise Time ,Fall Time ,Positive Width ,Negative Width ,Duty Cycle |
| Cursors Measurement |
Voltage difference between cursors (V)
Time difference between cursors (T) |
Auto Counter
|
Resolution : 6 digits
Accuracy: 2%
Signal Source: All available trigger source except the Video trigger mode |
| ADJUSTABLE PROBE COMPENSATION SIGNAL |
| Frequency Range |
1kHz ~ 100kHz, 1kHz/STEP |
| Duty Cycle Range |
5% ~ 95%, 5%/STEP |
| CONTROL PANEL FUNCTION |
| Autoset |
Adjust Vertical VOLT/DIV, Horizontal TIME/DIV, and Trigger level automatically |
| Save Setup |
Up to 15 sets of measurement conditions |
| Save Waveform |
15 sets of waveform |
| DISPLAY |
| TFT LCD Type |
5.7 inch |
| Display Resolution |
234(Vertically) x 320(Horizontally) Dots |
| Display Graticule |
8 x 10 divisions |
| Display Brightness |
Adjustable |
| INTERFACE |
| USB Device |
USB1.1 & 2.0 full speed compatible (Pictbridge Compatibility Printers Supported) |
| USB Host |
Image (BMP), waveform data (CSV), and setup (SET) |
| POWER SOURCE |
| Line Voltage Range |
AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection |
| MISCELLANEOUS |
| Multi-Language Menu |
Available |
| Onscreen Help |
Available |
| DIMENSIONS & WEIGHT |
|
310(W) x 142 (H) x 140(D)mm, Approx. 2.5kg |
| *Gli oscilloscopi digitali Serie GDS-1000A-U sono garantiti a vita |
|
